3 oz Single PE Coated Tea Cup Making Machine / Equipment 140-350gsm

3 oz Single PE Coated Tea Cup Making Machine / Equipment 140-350gsm

3 oz Single PE Coated Tea Cup Making Machine / Equipment 140-350gsm

Product Details:

Place of Origin: China
Brand Name: RuiZe
Certification: CE
Model Number: RUIZE-600A/600S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Contact Now
Detailed Product Description
Paper Cup Size: 50-350 Ml (mold Exchangeable) Productivity: 50-60 Pcs Per Minute
Power Source: 220V/380V 50Hz Or Other Required Warranty: 1 Years
After-sales Service: Free Training, Engineers Available To Service Machinery Overseas





3 oz Single PE Coated Tea Cup Making Machine / Equipment





Description:

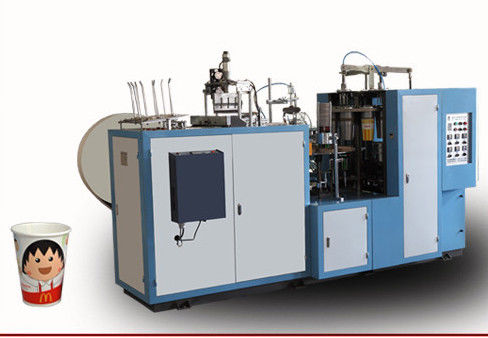

High Speed paper cup forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.




Specifications:



Model

Paper Cup Machine

Paper Cup Size

3oz-12oz (mold exchangeable)

Raw Material

One-side PE (polyethylene) film coated / laminated paper

Ultrasonic machine can be produce both single and double PE paper

Suitable paper weight

140-350 gsm

Productivity

50-60 pcs/ min

Power Source

220V/380V 50Hz or other required

Total Power

4.8KW

Total Weight

1500KG

Package Size(L x W x H)

2700 x1200 x1600mm

Working Air Source

0.4Mpa, Air Out-put:0.6 m3/minute

Making Double PE coated paper cups, need to buy an air compressor





Competitive Advantage:



1. We using Divided box is 125 type, which has two years warranty.
2. We using Speed reducer: 1:30 100 type
3. We using φ30 import steel shaft for the machine
4. We using 3 Cam to control the folding process.
5. We using two times paper feeding process.
6. We using Multilayer suckers for the paper taking




Applications:



Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc



3 oz Single PE Coated Tea Cup Making Machine / Equipment 140-350gsm
